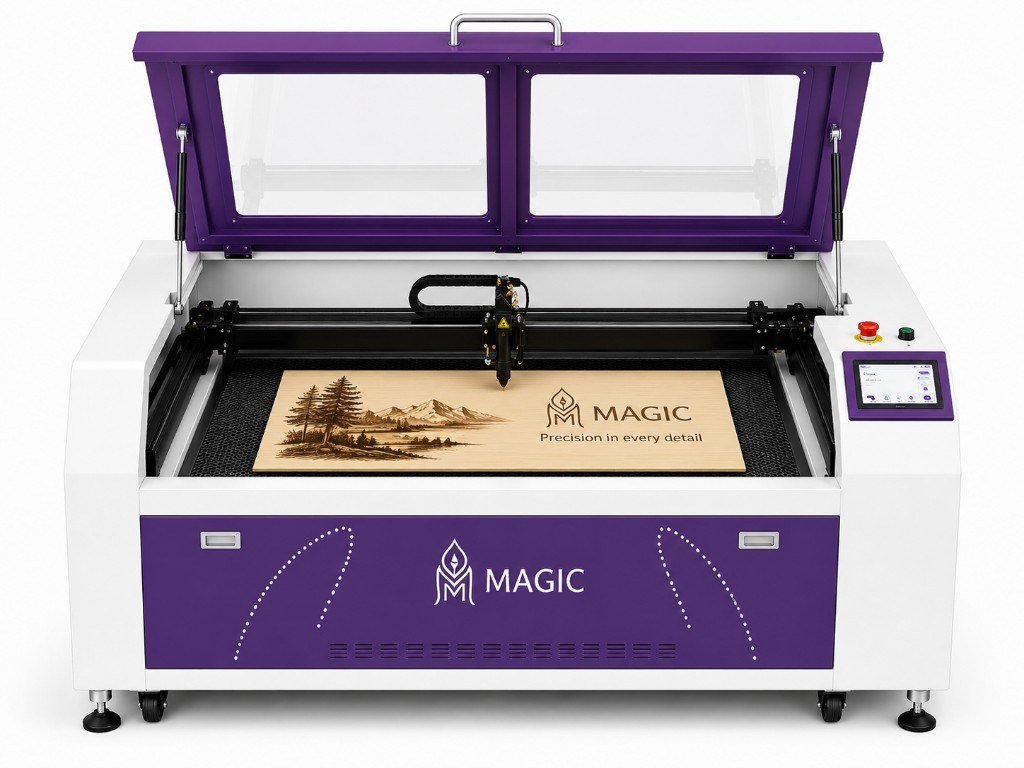

CO2 Laser Engraving Machine
The CO2 laser engraving machine is the surface-detail unit in our CO2 range. Use it for high-contrast engraving on wood, acrylic, rubber, fabric, leather and glass — signage, tags, packaging and decorative work. 60W to 150W at 10.6 μm.
Best for
- Logos, text and artwork on organics
- Signage, awards, boxes, stamps and leather goods
- Shops that engrave more than they through-cut
Not for
- Structural steel or aluminium plate (not this wavelength class)
- Thick acrylic/MDF through-cuts as the main job (CO2 cutting)
- Metal serials and QR (fiber)
vs siblings
Engraving is contrast and shallow depth. Cutting is kerf and larger beds.
CO2 cutting · Wood, leather and signage · Acrylic · CO2 family
Specs
| Parameter | Value |
|---|---|
| Laser power | 60W / 80W / 100W / 150W |
| Wavelength | 10.6 μm (CO2) |
| Engraving speed | Up to 500 mm/s |
| Max resolution | Up to 1000 DPI |
| Working area | 600×400 mm to 1600×1000 mm (configurable) |
| Cooling | Air or water, power-dependent |
| Supported materials | Wood, acrylic, rubber, leather, paper, fabric, glass |
| Software | RDWorks / LightBurn |
| Voltage | AC 220V, 50/60 Hz |
Features
- High-contrast engraving on non-metals
- Auto-focus or manual focus, depending on spec
- Optional honeycomb or blade bed, rotary, smoke exhaust, red-dot pointer, enclosure
Materials
Wood, acrylic, rubber, leather, paper, fabric, glass. Trial coated, mirrored and laminated sheets. Not a substitute for fiber on bare metal.
Applications and industries
Accessories
Honeycomb or blade bed, auto-focus, rotary, smoke exhaust, red-dot pointer, protective enclosure.
Why this model
Detail work on organics without buying a full cutting-bed power class if you mostly engrave.
FAQs
- Will it cut?
- Light cutting on thin materials is sometimes possible; specify the cutting machine when thickness and bed size are the job.
- Glass?
- Surface engraving, not a through-cut. Trial first.
Tell us the material, artwork size and whether you also need a through-cut.
