Fly Fiber Laser Marking Machine

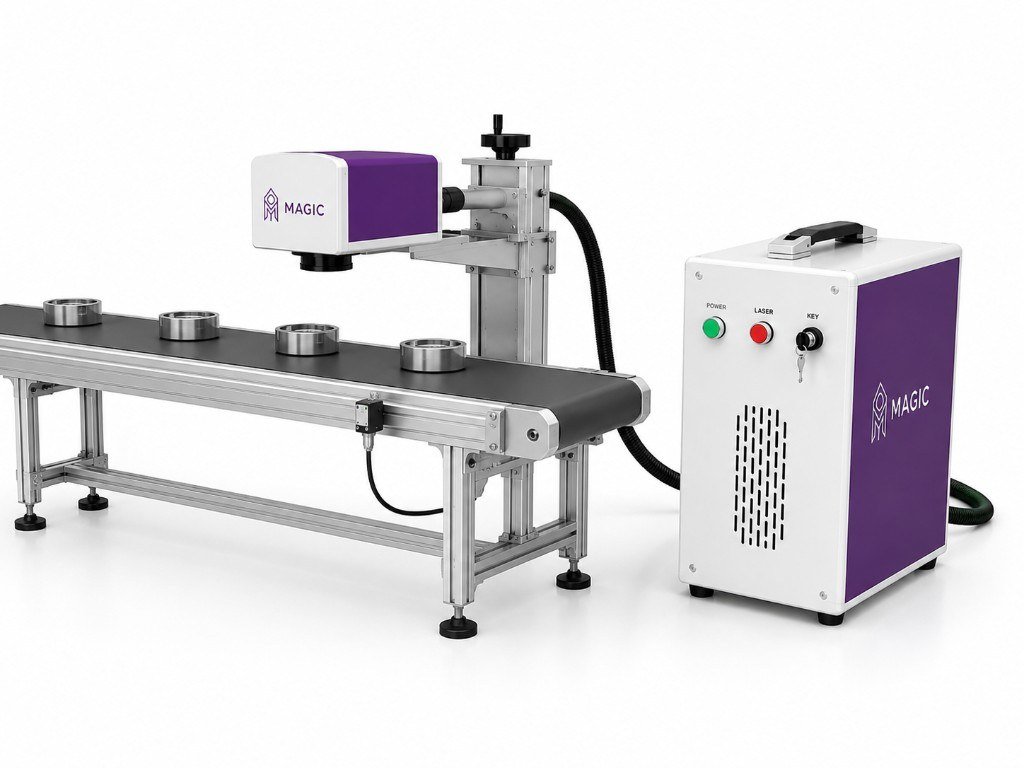

The fly fiber laser marking machine is the inline unit in our fiber range. Use it when parts stay on a conveyor or moving fixture and the mark must happen without stopping the line. Photocell or encoder trigger; serial, date and shift can change in software.
Best for
- Batch coding and unique serials on metal (and some plastics) at line speed
- Packaging-adjacent metal parts, automotive components, electronics metal cans
- 24×7 cells where a desktop operator is the bottleneck
Not for
- One-off job-shop pieces (desktop is cheaper to run)
- Heat-sensitive plastic bottles and PCBs as the main job (fly UV)
- Stationary oversized weldments (handheld)
vs siblings
Fly is line-synced. Desktop is a stop-and-mark station.
Desktop fiber · Inline laser marking · Fiber family
Specs
| Parameter | Value |
|---|---|
| Laser power | 20W / 30W / 50W / 100W |
| Wavelength | 1064 nm ± 5 |
| Marking speed | Up to 15,000 mm/s (application dependent) |
| Marking field | 110×110 mm standard; optional lenses up to 300×300 mm |
| Min. line width | 0.01 mm |
| Min. character height | 0.1 mm on install if verified; otherwise 1 mm |
| Repeat accuracy | ±0.01 mm |
| Triggering | Photoelectric sensor / encoder |
| Dynamic data | Serial, date, shift (software) |
| Laser source | IPG / JPT / Raycus / MAX |
| Cooling | Air-cooled |
| Software | EZCAD |
| Voltage | AC 220V, 50/60 Hz |
Features
- Mark without stopping the conveyor
- Mounting stand or gantry
- Optional encoder kit, shielding, stack light / buzzer
Materials
Metals typical of fiber; some coated and plastic parts after trial. For low-heat plastics on a line, compare fly UV.
Applications and industries
Accessories
Gantry, sensor/encoder kit, feeders, inline shielding, stack light.
Why this model
Traceability at line rate without a marking operator on every part.
FAQs
- Must the line stop?
- No — that is the point of fly, if trigger and speed are set correctly.
- Pharma / FMCG plastics?
- Often UV fly, not fiber. We confirm on a sample.
Tell us line speed, mark content, and the material.
