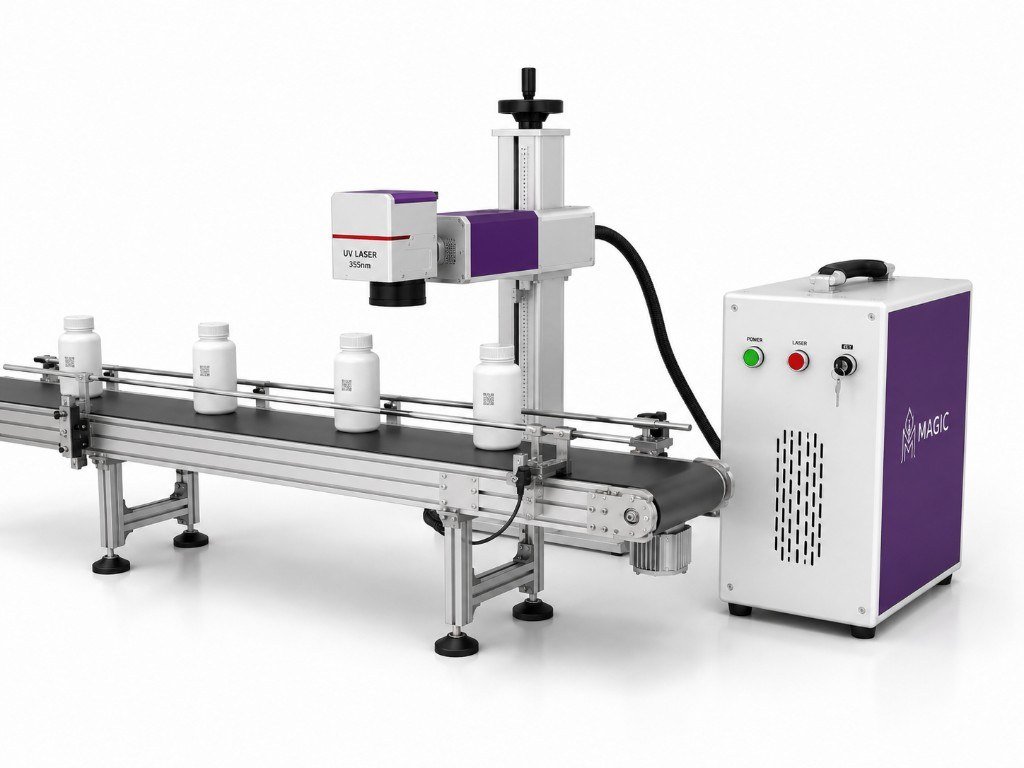

Fly UV Laser Marking Machine
The fly UV laser marking machine is the inline unit in our UV range. Use it when heat-sensitive parts stay on a conveyor — PET, film, cables, plastic housings, medical devices — and the mark must happen without stopping the line. Photocell or encoder trigger; serial, batch, date and shift can change in software.
Best for
- Pharma, FMCG and packaging codes on plastics
- PET bottles, films, cables, medical disposables
- Line-rate UID where fiber heat would damage the part
Not for
- One-off bench jobs (desktop UV)
- Gold jewellery (gold fiber)
- Moving metal components as the main job (fly fiber)
vs siblings
Fly UV is line-synced cold marking. Desktop UV is stop-and-mark.
Desktop UV · Inline laser marking · Plastic UV · UV family
Specs
| Parameter | Value |
|---|---|
| Laser power | 3W / 5W / 10W |
| Wavelength | 355 nm (UV) |
| Marking speed | Up to 15,000 mm/s (application dependent) |
| Marking field | 110×110 mm; optional up to 300×300 mm |
| Min. line width | 0.02 mm |
| Min. character height | 1 mm |
| Repeat accuracy | ±0.01 mm |
| Triggering | Photoelectric sensor / encoder |
| Dynamic data | Serial, batch, date, shift (software) |
| Cooling | Air or water, depending on power |
| Software | EZCAD or compatible |
| Voltage | AC 220V, 50/60 Hz |
Features
- Mark moving parts without a stop station
- Optional gantry, sensor/encoder kit, fume extractor, UV-blocking enclosure, vision or barcode check
Materials
Plastics, packaging films, PET, cables, medical polymers, some coated electronics. Trial inks, additives and transparent films.
Applications and industries
Accessories
Sensor + encoder kit, inline frame or gantry, fume extractor, UV-blocking enclosure, vision / barcode scanner.
Why this model
Traceability on plastic packaging and parts at line rate, without fiber heat.
FAQs
- Fiber fly or UV fly?
- Metal-heavy lines → fiber fly. Heat-sensitive plastics and many bottles → UV fly. Sample decides.
- Must the line stop?
- No, if trigger, speed and mark window are set correctly.
Tell us line speed, the plastic, and the code.
