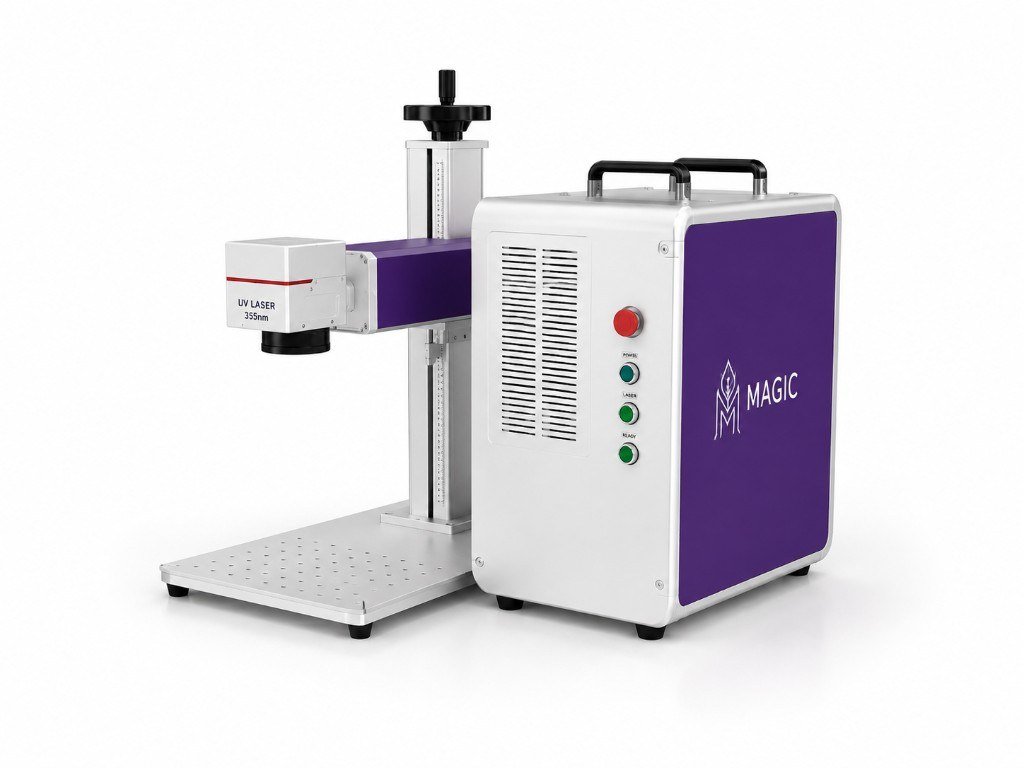

Portable UV Laser Marking Machine
The portable UV laser marking machine is the compact unit in our UV range. Use it when the same 355 nm process must move between workstations or light field jobs. It marks plastics, glass, PCBs, cables and medical components at 3W / 5W / 10W without a full desktop cabin.
Best for
- Several benches sharing one UV marker
- Cables, small plastics and boards that are marked in different cells
- Shops that cannot park a full UV cabin on every line
Not for
- High-speed bottle, film or conveyor coding (fly UV)
- A single dedicated electronics cell (desktop is simpler to fixture)
- Deep steel stamps (fiber or dot peen)
vs siblings
Portable is a movable UV marker, not fly and not a handheld welding gun.
Specs
| Parameter | Value |
|---|---|
| Laser power | 3W / 5W / 10W |
| Wavelength | 355 nm (UV) |
| Marking speed | Up to 15,000 mm/s (application dependent) |
| Marking field | 110×110 mm; optional up to 300×300 mm |
| Min. line width | 0.02 mm |
| Min. character height | 1 mm |
| Repeat accuracy | ±0.01 mm |
| Cooling | Air or water, depending on requirement |
| Software | EZCAD or compatible |
| Voltage | AC 220V, 50/60 Hz |
Features
- Compact, lighter body than a full workstation
- Optional trolley, UV safety enclosure, rotary, exhaust, auto-focus
- Same cold-mark process as desktop UV
Materials
Plastics, PCBs, glass, cables, medical components. Trial before production.
Applications and industries
Accessories
Trolley stand, UV safety window enclosure, rotary, exhaust, auto-focus.
Why this model
355 nm where the marker has to travel, without buying a fly integration.
FAQs
- Same as desktop?
- Same wavelength family. Desktop is the stable station; this is the compact moveable unit.
- Inline PET bottles?
- That is fly UV, with encoder/sensor.
Tell us how many cells the marker must serve.
